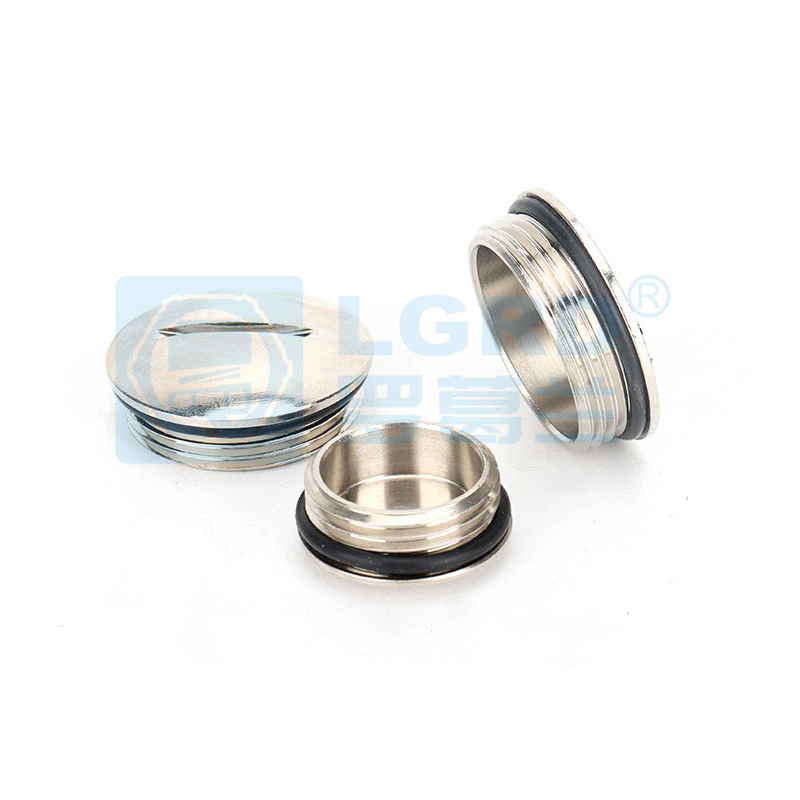

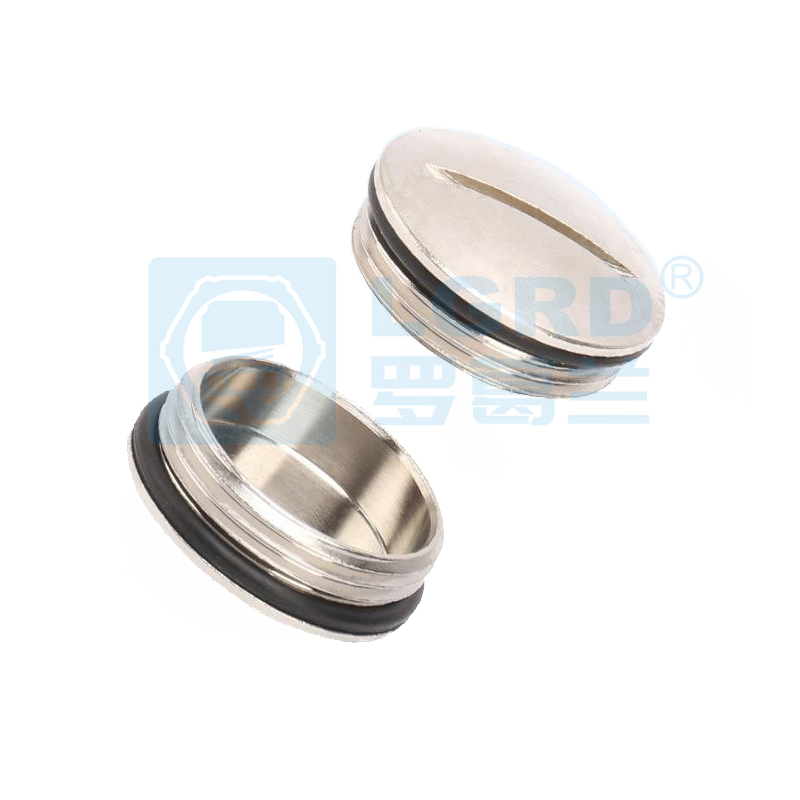

金属圆形闷盖
- 产品详情
★螺牙规格：公制(Metric)、德制（PG）、G（PF) 、NPT牙
★产品材质：采用黄铜镀镍制成
★工作温度：-40℃至100℃。
★防护等级：IP54/IP68
★注：特殊规格需要请与工厂联系

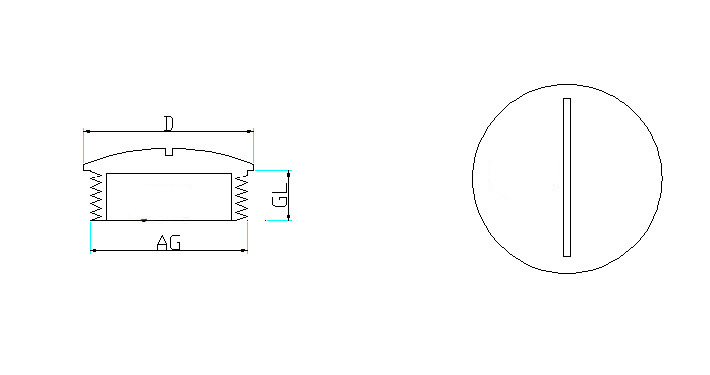

- 结构图
| 螺牙规格Thread | 型号 Model | 螺纹外径AG(mm )Thread O.D AG | 螺纹长度GL(mm )Thread Lengt GL | 闷盖高度(mm )Product height | 包装（PCS） Std.Pkg |
| M8*1 | Y-M8 | 8 | 5 | 8 | 50 |
| M10*1.5 | Y-M10 | 10 | 5 | 8 | 50 |
| M12*1.5 | Y-M12 | 12 | 6 | 9 | 50 |
| M16*1.5 | Y-M16 | 16 | 6 | 9 | 50 |
| M18*1.5 | Y-M18 | 18 | 6 | 9 | 50 |
| M20*1.5 | Y-M20 | 20 | 6.5 | 9.5 | 50 |
| M22*1.5 | Y-M22 | 22 | 6.5 | 9.5 | 50 |
| M24*1.5 | Y-M24 | 24 | 6.5 | 9.5 | 10 |
| M25*1.5 | Y-M25 | 25 | 6.5 | 9.5 | 10 |
| M30*1.5 | Y-M30 | 30 | 7 | 11 | 10 |
| M32*1.5 | Y-M32 | 32 | 7.5 | 11.5 | 5 |
| M36*1.5 | Y-M36 | 36 | 8 | 12 | 5 |
| M40*1.5 | Y-M40 | 40 | 8 | 13 | 5 |
| M47*1.5 | Y-M47 | 47 | 9 | 15 | 5 |
| M50*1.5 | Y-M50 | 50 | 9 | 15 | 5 |
| M54*1.5 | Y-M54 | 54 | 10 | 16 | 5 |
| M60*1.5 | Y-M60 | 60 | 10 | 16 | 5 |
| M63*1.5 | Y-M63 | 63 | 10 | 16 | 1 |
| M72*1.5 | Y-M72 | 72 | 10 | 16 | 1 |
| PG7 | Y-PG7 | 12.5 | 6 | 9 | 50 |
| PG9 | Y-PG9 | 15.2 | 6 | 9 | 50 |
| PG11 | Y-PG11 | 18.6 | 6 | 9 | 50 |
| PG13.5 | Y-PG13.5 | 20.4 | 6.5 | 9.5 | 50 |
| PG16 | Y-PG16 | 22.5 | 6.5 | 9.5 | 50 |
| PG19 | Y-PG19 | 24 | 7 | 11 | 10 |
| PG21 | Y-PG21 | 28.3 | 7 | 11 | 10 |
| PG29 | Y-PG29 | 37 | 8 | 12 | 10 |
| PG36 | Y-PG36 | 47 | 9 | 15 | 10 |
| PG42 | Y-PG42 | 54 | 10 | 16 | 5 |
| PG48 | Y-PG48 | 59.3 | 10 | 16 | 5 |
