尼龙防折弯电缆接头（A型）
- 产品详情
★螺牙规格：公制(Metric)、德制（PG）、NPT牙
★产品材质：A、C、E、F采用UL认可的尼龙PA66(防火等级UL94V-2)制成。（可定制UL认可的V-0 防火等级的尼龙原料）；B、D采用三元乙丙（EPDM)耐候橡胶制成。（可定制耐寒，耐高温，耐强酸碱，耐化学与抗腐蚀橡胶。）
★防护等级：IP68-10
★工作温度：静态-40℃-100℃，短时可至120℃；动态 -20℃-80℃，短时可至100℃.
★产品特性：特殊的夹紧爪与夹紧圈设计，夹紧电缆范围大，抗拉力强，可防水，防尘抗盐，耐弱酸、酒精、油、油脂及一般溶剂.
★颜色种类：黑色、灰色。其它颜色可定做。

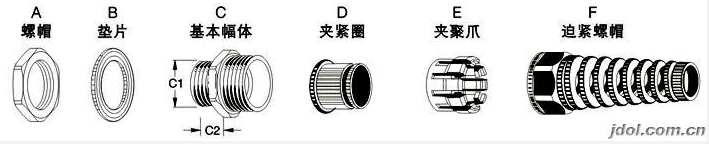

- 结构图
| 螺牙规格 Thread | 型号 Model | 电缆范围￠(mm) Cable Range ￠ | 螺纹外径C1(mm) Thread O.D C1 | 螺纹长度C2(mm) Thread Lengt C2 | 扳手径 A&F(mm) Spanner Size A&F | 包装(PCS) Std.Pkg |
| M12X1.5 | MG12A-5.5 | 3-5.5 | 12 | 8.5 | 18/19 | 50 |
| MG12A-8 | 4-8 | 12 | 8.5 | 18/19 | 50 | |
| M16X1.5 | MG16AS-5.5-ST | 3-5.5 | 16 | 10 | 22/19 | 50 |
| MG16AS-8-ST | 4-8 | 16 | 10 | 22/19 | 50 | |
| MG16A-7-ST | 4-7 | 16 | 10 | 22/22 | 50 | |
| MG16A-10-ST | 6-10 | 16 | 10 | 22/22 | 50 | |
| MG16AL-7 | 4-7 | 16 | 15 | 22/22 | 50 | |
| MG16AL-10 | 6-10 | 16 | 15 | 22/22 | 50 | |
| M20X1.5 | MG20AS-9 | 5-9 | 20 | 10 | 27/24 | 50 |
| MG20AS-12.5 | 8-12.5 | 20 | 10 | 27/24 | 50 | |
| MG20A-11-ST | 7-11 | 20 | 10 | 27/27 | 50 | |
| MG20A-14-ST | 9-14 | 20 | 10 | 27/27 | 50 | |
| MG20AL-11 | 7-11 | 20 | 15 | 27/27 | 50 | |
| MG20AL-14 | 9-14 | 20 | 15 | 27/27 | 50 | |
| M22X1.5 | MG22A-11-ST | 7-11 | 22 | 10 | 27/27 | 50 |
| MG22A-14-ST | 9-14 | 22 | 10 | 27/27 | 50 | |
| M25X1.5 | MG25A-16 | 10-16 | 25 | 15 | 33/33 | 50 |
| MG25A-18 | 13-18 | 25 | 15 | 33/33 | 50 | |
| PG7 | PG7A-5.5 | 3-5.5 | 12.5 | 8 | 17/19 | 50 |
| PG7A-8 | 4-7 | 12.5 | 8 | 17/19 | 50 | |
| PG9 | PG9A-5.5 | 3-5.5 | 15.2 | 8.2 | 22/19 | 50 |
| PG9A-8 | 4-8 | 15.2 | 8.2 | 22/19 | 50 | |
| PG11 | PG11A-7 | 4-7 | 18.6 | 10 | 24/22 | 50 |
| PG11A-10 | 6-10 | 18.6 | 10 | 24/22 | 50 | |
| PG13.5 | PG13.5A-8.8 | 4-8.8 | 20.4 | 10 | 27/24 | 50 |
| PG13.5A-12.5 | 8-12.5 | 20.4 | 10 | 27/24 | 50 | |
| PG16 | PG16A-11 | 7-11 | 22.5 | 10.8 | 30/27 | 50 |
| PG16A-14 | 9-14 | 22.5 | 10.8 | 30/27 | 50 | |
| PG21 | PG21A-16 | 10-16 | 28.3 | 12 | 36/33 | 50 |
| PG21A-18 | 13-18 | 28.3 | 12 | 36/33 | 50 | |
| G(PF)1/4" | G1/4A-5 | 3-5.5 | 13.157 | 8.5 | 19/19 | 50 |
| G1/4A-8 | 4-8 | 13.157 | 8.5 | 19/19 | 50 | |
| G(PF)3/8" | G3/8A-7 | 4-7 | 16.662 | 10 | 22/22 | 50 |
| G3/8A-10 | 6-10 | 16.662 | 10 | 22/22 | 50 | |
| G(PF)1/2" | G1/2A-9 | 5-9 | 20.955 | 10 | 27/24 | 50 |
| G1/2A-12.5 | 8-12.5 | 20.955 | 10 | 27/24 | 50 | |
| G(PF)3/4" | G3/4A-13 | 9-13 | 26.441 | 12 | 36/33 | 50 |
| G3/4A-18 | 13-18 | 26.441 | 12 | 36/33 | 50 |
