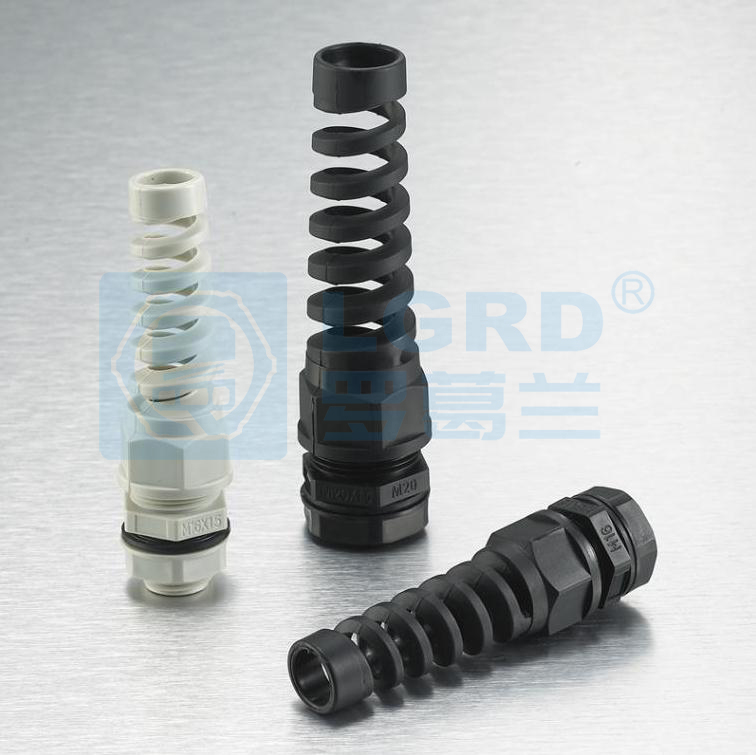

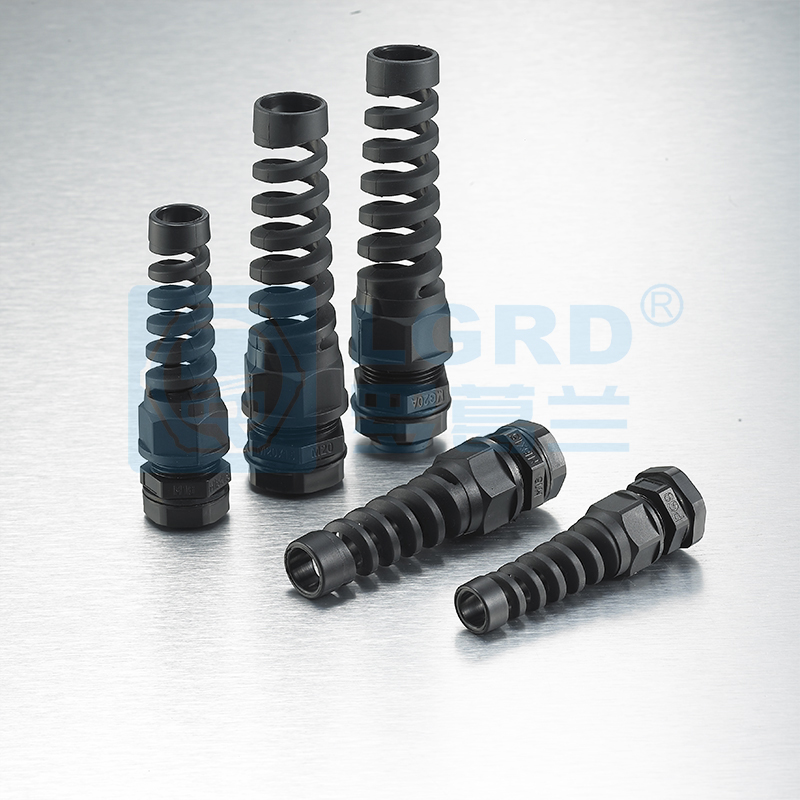

尼龙防折弯电缆接头（B型）
- 产品详情
★螺牙规格：公制(Metric)、德制（PG）、NPT牙
★产品材质：A、C、F采用UL认可的尼龙PA66(防火等级UL94V-2)制成。（可定制UL认可的V-0 防火等级的尼龙原料）；B、D采用三元乙丙（EPDM)耐候橡胶制成。（可定制耐寒，耐高温，耐强酸碱，耐化学与抗腐蚀橡胶。）
★防护等级：IP68-10
★工作温度：静态-40℃-100℃，短时可至120℃；动态 -20℃-80℃，短时可至100℃.

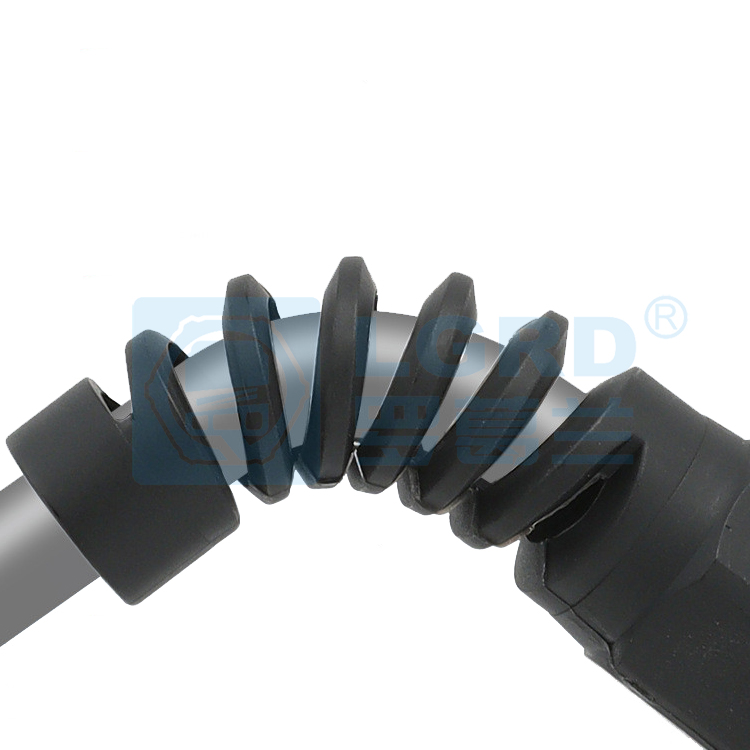

★产品特性：特殊的夹紧爪与夹紧圈设计，夹紧电缆范围大，抗拉力强，可防水，防尘抗盐，耐弱酸、酒精、油、油脂及一般溶剂.
★颜色种类：黑色、灰色。其它颜色可定做。

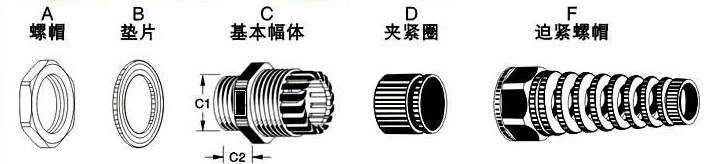

- 结构图
| 螺牙规格 Thread | 型号 Model | 电缆范围￠(mm) Cable Range ￠ | 螺纹外径C1(mm) Thread O.D C1 | 螺纹长度C2(mm) Thread Lengt C2 | 扳手径 A&F(mm) Spanner Size A&F | 包装(PCS) Std.Pkg |
| M12X1.5 | MGB12S-6 | 3-6 | 12 | 8.5 | 18/15 | 50 |
| MGB12SL-6 | 3-6 | 12 | 15 | 18/15 | 50 | |
| MGB12-5 | 2-5 | 12 | 8.5 | 18/19 | 50 | |
| MGB12-7 | 4-7 | 12 | 8.5 | 18/19 | 50 | |
| MGB12L-5 | 2-5 | 12 | 15 | 18/19 | 50 | |
| MGB12L-7 | 4-7 | 12 | 15 | 18/19 | 50 | |
| M16X1.5 | MGB16S-8 | 4-8 | 16 | 10 | 22/19 | 50 |
| MGB16SL-8 | 4-8 | 16 | 15 | 22/19 | 50 | |
| MGB16-7 | 4-7 | 16 | 10 | 22/22 | 50 | |
| MGB16-10 | 6-10 | 16 | 10 | 22/22 | 50 | |
| MGB16L-7 | 4-7 | 16 | 15 | 22/22 | 50 | |
| MGB16L-10 | 6-10 | 16 | 15 | 22/22 | 50 | |
| M18X1.5 | MGB18-7 | 4-7 | 18 | 10 | 24/22 | 50 |
| MGB18-10 | 6-10 | 18 | 10 | 24/22 | 50 | |
| MGB18L-7 | 4-7 | 18 | 15 | 24/22 | 50 | |
| MGB18L-10 | 6-10 | 18 | 15 | 24/22 | 50 | |
| M20X1.5 | MGB20S-9 | 5-9 | 20 | 10 | 27/24 | 50 |
| MGB20S-12.5 | 8-12.5 | 20 | 10 | 27/24 | 50 | |
| MGB20SL-9 | 5-9 | 20 | 15 | 27/24 | 50 | |
| MGB20SL-12.5 | 8-12.5 | 20 | 15 | 27/24 | 50 | |
| MGB20-11 | 7-11 | 20 | 11 | 27/27 | 50 | |
| MGB20-13.5 | 9-14 | 20 | 11 | 27/27 | 50 | |
| MGB20L-11 | 7-11 | 20 | 15 | 27/27 | 50 | |
| MGB20L-13.5 | 9-14 | 20 | 15 | 27/27 | 50 | |
| M22X1.5 | MGB22-11 | 7-11 | 22 | 11 | 30/27 | 50 |
| MGB22-13.5 | 9-14 | 22 | 11 | 30/27 | 50 | |
| M25X1.5 | MGB25S-11 | 9-14 | 25 | 11.6 | 33/27 | 50 |
| MGB25S-14 | 9-14 | 25 | 11.6 | 33/27 | 50 | |
| MGB25-16 | 10-16 | 25 | 11.6 | 33/33 | 50 | |
| MGB25-18 | 12-18 | 25 | 11.6 | 33/33 | 50 | |
| MGB25L-16 | 10-16 | 25 | 15 | 33/33 | 50 | |
| MGB25L-18 | 12-18 | 25 | 15 | 33/33 | 50 | |
| PG7 | PGB7S-6 | 3-6.5 | 12.5 | 8 | 17/15 | 50 |
| PGB7-5 | 3-5.5 | 12.5 | 8 | 17/19 | 50 | |
| PGB7-7 | 4-7 | 12.5 | 8 | 17/19 | 50 | |
| PG9 | PGB9-5.5 | 3-5.5 | 15.2 | 8.2 | 22/19 | 50 |
| PGB9-7.5 | 3-7.5 | 15.2 | 8.2 | 22/19 | 50 | |
| PG11 | PGB11-7 | 4-7 | 18.6 | 10 | 24/22 | 50 |
| PGB11-10 | 6-10 | 18.6 | 10 | 24/22 | 50 | |
| PG13.5 | PGB13.5-9 | 5-9 | 20.4 | 10 | 27/24 | 50 |
| PGB13.5-12.5 | 8-12.5 | 20.4 | 10 | 27/24 | 50 | |
| PG16 | PGB16-11 | 7-11 | 22.5 | 10.8 | 30/27 | 50 |
| PGB16-14 | 9-14 | 22.5 | 10.8 | 30/27 | 50 | |
| PG19 | PGB19-11 | 7-11 | 24 | 11 | 30/27 | 50 |
| PGB19-14 | 9-14 | 24 | 11 | 30/27 | 50 | |
| PG21 | PGB21-15.5 | 8-15.5 | 28.3 | 12 | 36/33 | 50 |
| PGB21-17.5 | 12.5-18 | 28.3 | 12 | 36/33 | 50 | |
| G(PF)1/4" | GB1/4-5 | 3-5.5 | 13.157 | 8.5 | 19/19 | 50 |
| GB1/4-8 | 4-8 | 13.157 | 8.5 | 19/19 | 50 | |
| G(PF)3/8" | GB3/8-7 | 4-7 | 16.662 | 10 | 22/22 | 50 |
| GB3/8-10 | 6-10 | 16.662 | 10 | 22/22 | 50 | |
| G(PF)1/2" | GB1/2-9 | 5-9 | 20.955 | 10 | 27/24 | 50 |
| GB1/2-12.5 | 8-12.5 | 20.955 | 10 | 27/24 | 50 | |
| G(PF)3/4" | GB3/4-16 | 10-16 | 26.441 | 12 | 33/27 | 50 |
| GB3/4-18 | 12-18 | 26.441 | 12 | 33/27 | 50 | |
| NPT3/8" | NPTB3/8-7 | 4-7 | 16.662 | 10 | 22 | 50 |
| NPTB3/8-10 | 6-10 | 16.662 | 10 | 22 | 50 | |
| NPT1/2" | NPTB1/2-9 | 5-9 | 20.955 | 10 | 24 | 50 |
| NPTB1/2-13 | 9-13 | 20.955 | 10 | 24 | 50 | |
| NPT3/4" | NPTB3/4-16 | 10-16 | 26.441 | 15 | 33 | 50 |
| NPTB3/4-18 | 12-18 | 26.441 | 15 | 33 | 50 | |
